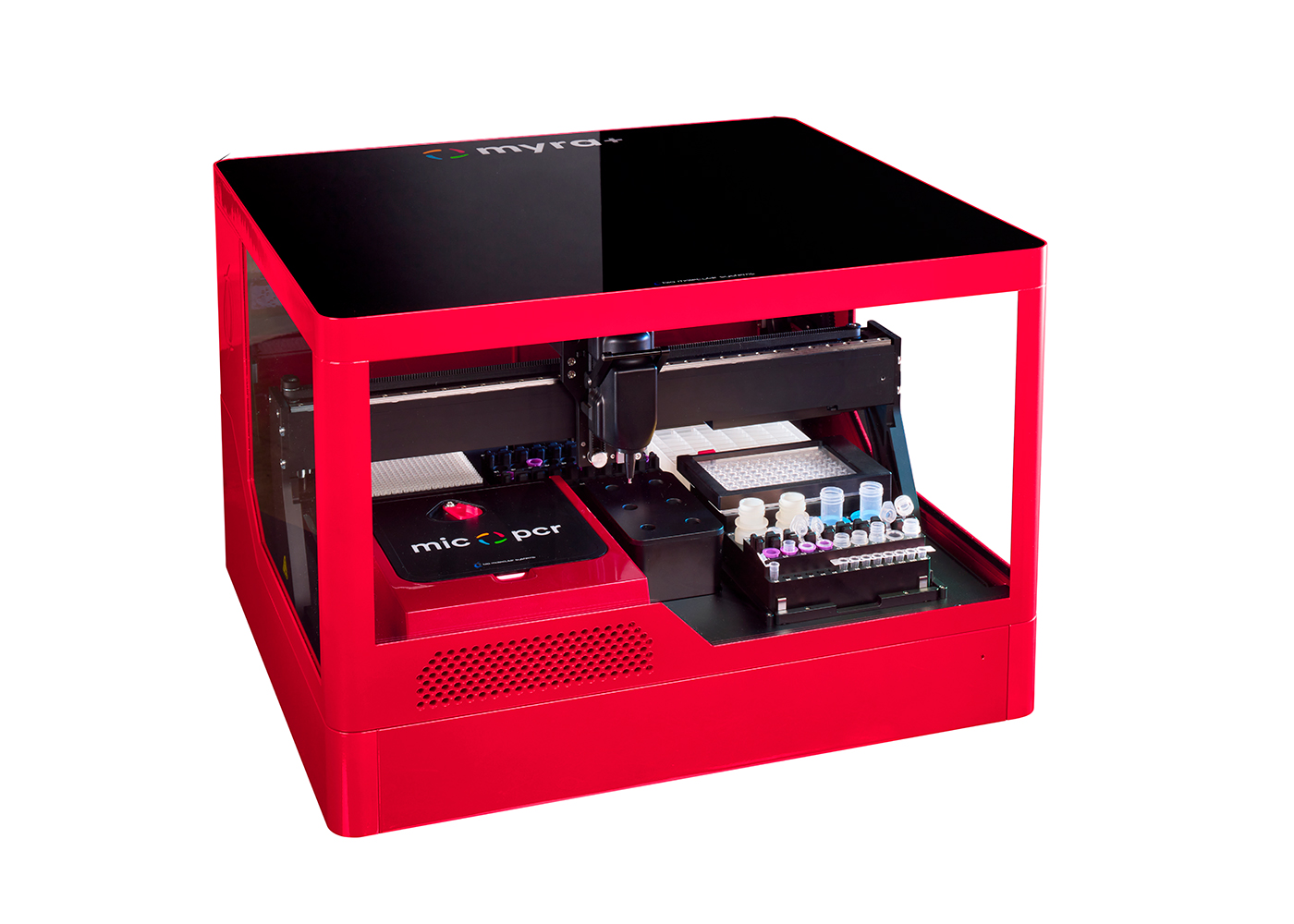

Automated qPCR System

Combining next generation qPCR technology with state of the art liquid handling hardware. The Myra+ is an automated molecular instrument ideal for any lab or researcher.

Myra liquid handling + Mic qPCR = Myra+

Precise liquid handling robot
Accurate qPCR cycler on deck
Compact Size
Perfect for syndromic tests
HEPA Filter and UV come standard
Reduce cost per test

Samples and reactions are loaded directly into the V-cap tubes within the on-deck Mic qPCR cycler. The system is
designed to monitor for the presence of tubes and prevent the loading of tubes that might contain the previous run
reactions, thereby avoiding contamination issues.

Myra+ | Specs

Physical

Height	356mm
Width	520mm
Length	468mm
Weight	18 kg

Electrical

AC Input

100 – 240 VAC, 50/60 Hz 4.0 A

Cycler

Temperature Accuracy	± 0.25°C
Temperature Uniformity	± 0.10°C maximum
Temperature Input Range	35 – 99°C
Detectors	Photodiode per channel
Excitation Sources	High energy light emitting diodes for each channel
Channels	4
Acquisition time	1 s
Samples per Instrument	48
Reaction Volumes	5 – 25 µL

Robot

Liquid Handling	18 – 35ºC
Position control	Closed loop, 100 µm resolution
Level detection	Pressure sensing
Calibration	High precision camera
Precision	1 µL: 5% CV5 – 50 µL: 1% CV
Accuracy	1 µL: <10% CV5 – 50 µL: 1% CV

Operating Environment

Temperature	19 – 30 °C
Relative Humidity	20 – 80%
