Special offer – Second box – 50% off
Top of the line precast gels
- Longest shelf life – up to Two-year shelf life (maximum)
- Best resolution, sharpest bands
- Short run times (45 minutes vs 1.5 hours)
- Most efficient transfer
- Best run-to-run consistency
- Preformed and numbered sample wells included in gel
- Combs removed ready for use
- Fast setup in patented cassette
- 5 different concentrations allow separation of all proteins
- Available 10, 12 and 15 well formats
- Stable and reproducible
Please use this link to download the nUView Precast Gels Instructions for Use

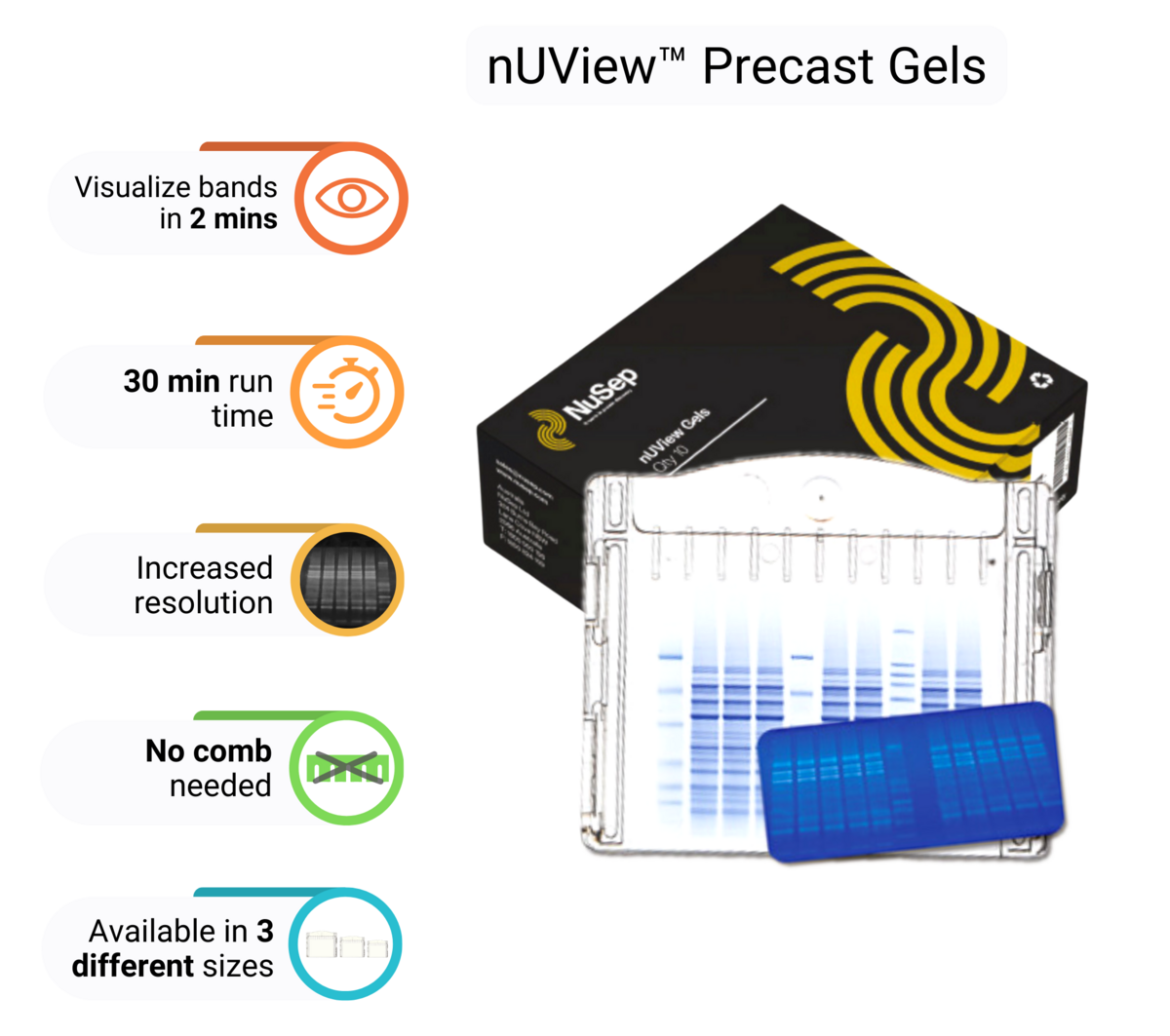

NUView precast Gels – Much more than a Precast Gels

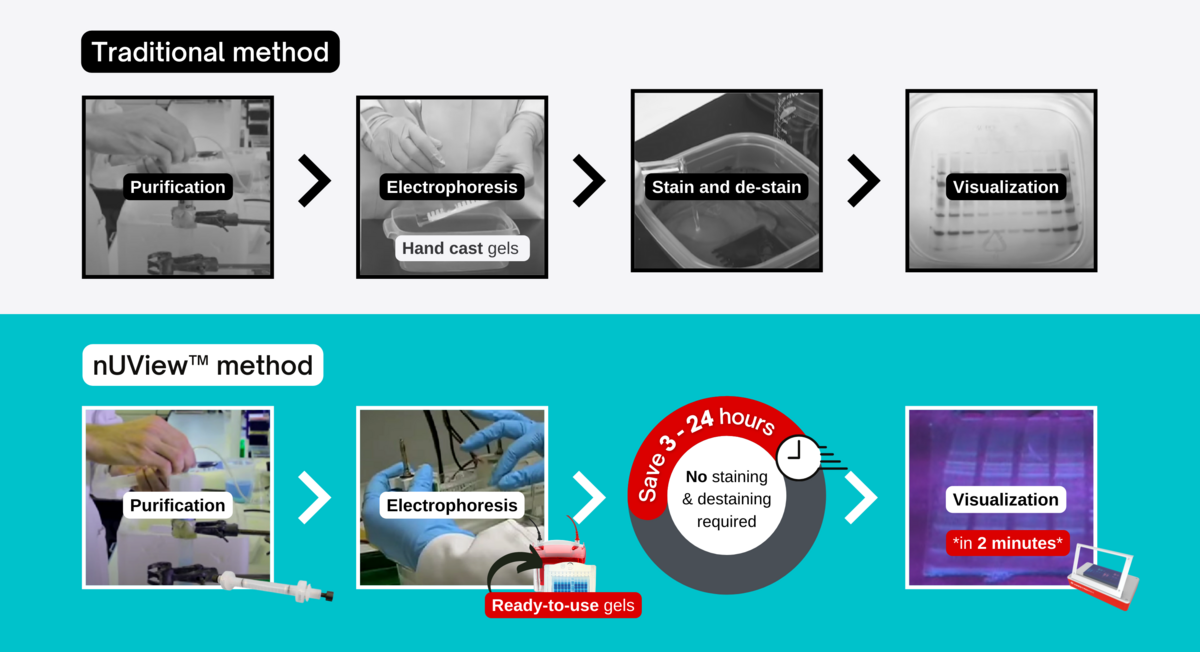

nUView Precast Gels offers the new generation of precast gels to help you achieve the best results in a cost effective way. The beauty of nUView is that you can visualise your proteins within 2 minutes of completing a run and this visualisation does not change or interfere with any other downstream process. Using NUView you can photograph your gel post the gel run to create a permanent record. After this visualisation you can blot, probe or stain in the full knowledge of your samples location and concentration. The nUView Precast Gels technology is a breakthrough in protein separations.
| Product | NN Series | NB Series | NG Series |
| Well Number (Vol) | 10 (50 µL) 12 (30 µL) 17 (20 µL) | 10 (50 µL) 12 (30 µL) 17 (20 µL) | 10 (50 µL) 12 (30 µL) 15 (25 µL) |
| Storage Condition | 4 °C for up to 24 Months | 4 °C for up to 24 Months | 4 °C for up to 24 Months |
| Recommended running buffer | Tris-glycine SDS | Tris-glycine SDS | Tris-glycine SDS |
| Available % Acrylamide | 8%, 10%, 12%, 8-16%,4-20% | 8%, 10%, 12%, 8-16%,4-20% | 8%, 10%, 12%, 8-16%,4-20% |

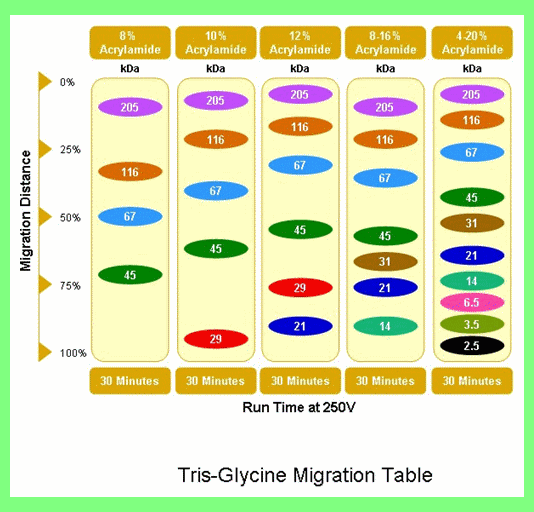

| Separation Range 8% | 200-45 kDa | 200-45 kDa | 200-45 kDa |
| Separation Range 10% | 200-10 kDa | 200-10 kDa | 200-10 kDa |
| Separation Range 12% | 200-21 kDa | 200-21 kDa | 200-21 kDa |
| Separation Range 8-16% | 200-10 kDa | 200-10 kDa | 200-10 kDa |
| Separation Range 4-20% | 200-6.5 kDa | 200-6.5 kDa | 200-6.5 kDa |
| Compatible Tanks | XCell Surelock Mini | WIX-PRO, Mini-Protean (tetra and dodeca) | All other 10cm Tanks |
| Run Time | 50 min | 35 min | 30 min |
| Recommended Voltage | 250 V | 250 V | 250 V |
| UV Visualization | in 2 minutes | in 2 minutes | in 2 minutes |
| Cassette Size: Wide x High x Thick, cm | 10 x 10 x 0.7 | 10 x 8.5 x 0.5 | 10 x 8 x 0.5 |
| Gel Size: Wide x High x Thick, cm | 8 x 8.8 x 0.1 | 8 x 7.3 x 0.1 | 8 x 6.8 x 0.1 |
NuSep provides a range of cassettes to suit your needs – no need to replace your current tank!
NG cassettes (10cm wide X 8.0cm high) fit in (but not limited to) the following 10cm tanks:
• WIX-easyPRO, WIX-miniPRO, Wix-multiPRO
• VWR Tanks
• GradiGel Mini 4 -Cell
• EC 4- Cell
• Hoefer Tall Mighty Small (SE 280)
• Hoefer Mighty Small II (SE 260/SE 250)
• Hoefer Mini VE
• Daiichi Mini 2-Gel & 6-Gel
• Owl Road Runner, Penguin
• Invitrogen™ Novex® XCell I and II and SureLock™
• Bio-Rad® Mini-PROTEAN® II & 3
• Owl Single Sided Vertical System
• Shelton IBI protein system
NB cassettes (10cm wide X 8.5cm high) will fit in all Bio-Rad™ Mini-Protean™ tanks (including tetra and dodeca cells).
NN cassettes (10cm wide X 10cm high) will fit in Mini gel Tank or Invitrogen™ X-Cell Sure-Lock™ Mini-Cell Tank.
